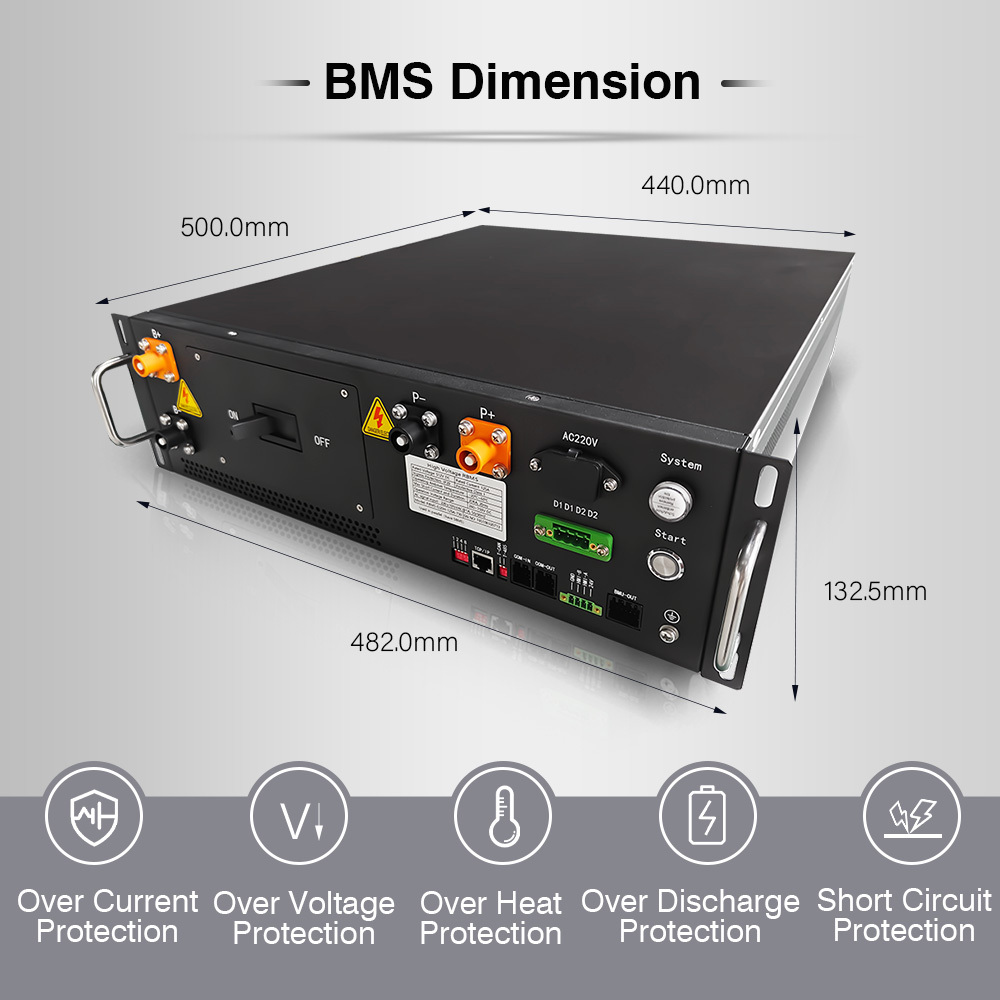

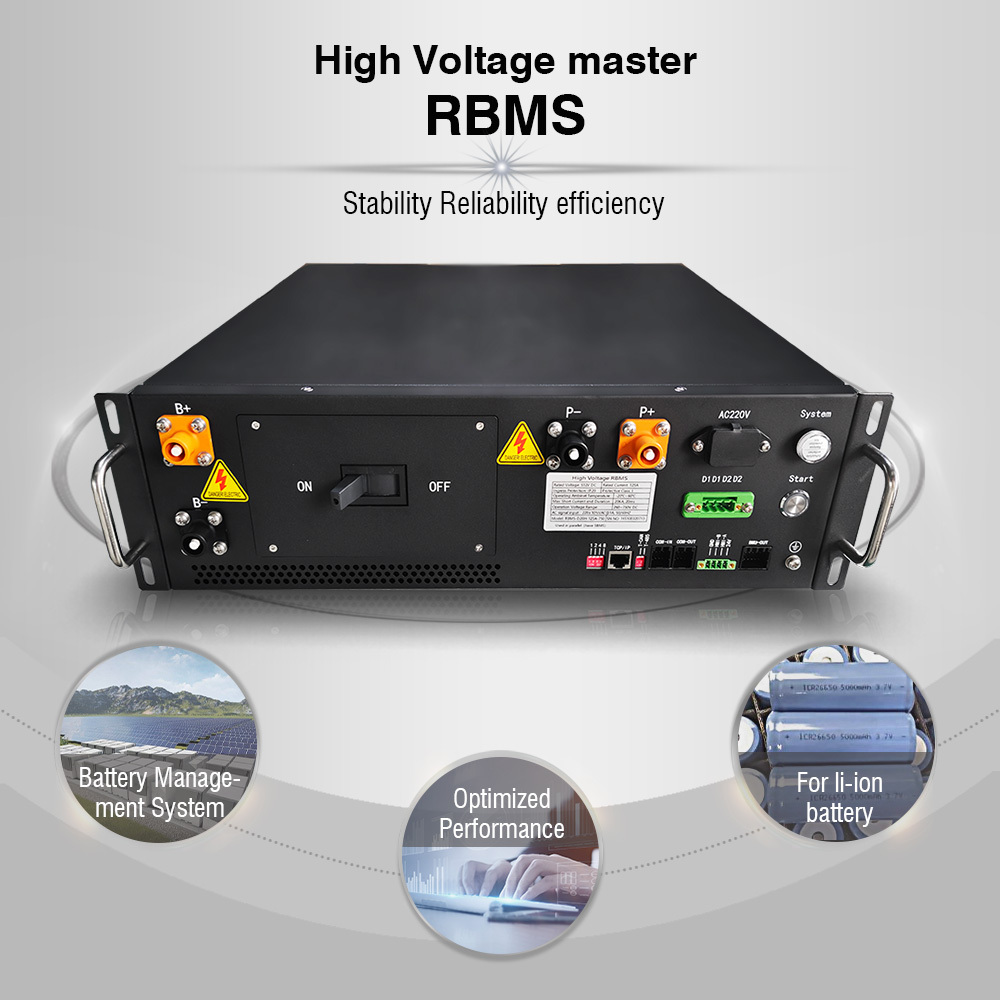

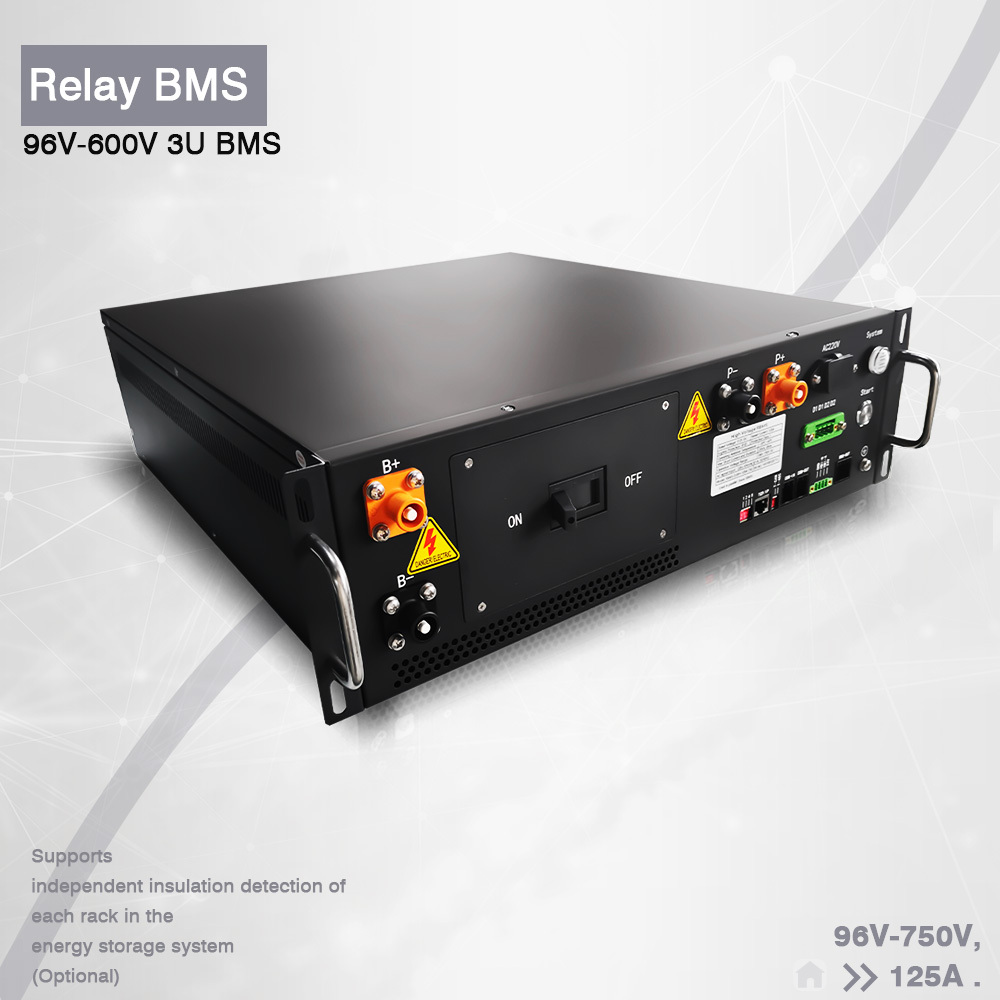

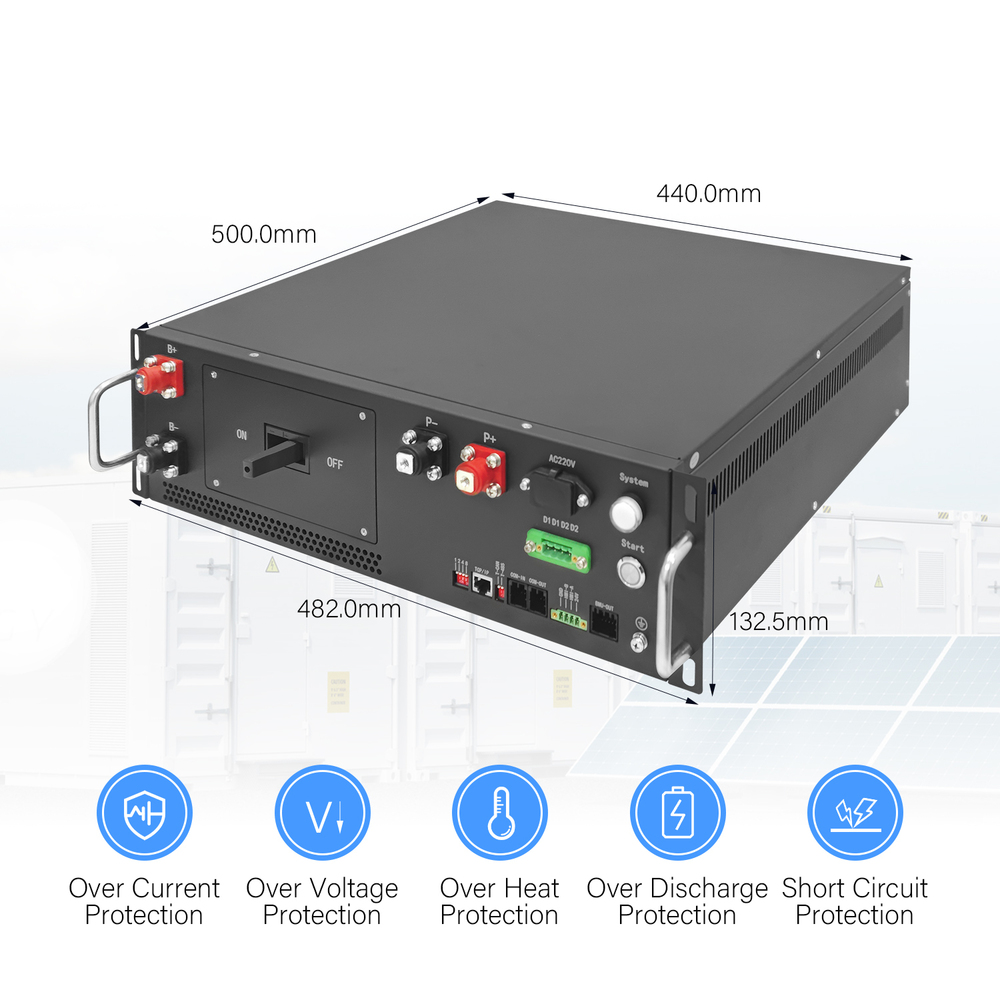

GCE 260 to 750V 125A 3U RBMS master bms

Product Description

RBMS is a baltery management system developed for large-scale high-voltage battery

energy storage systems and UPS applications. it adopts distributed architecture and modular

design concept, which is highly configurable, easy to assemble, debug and maintain. lt is

suitable for various battery energy storage systems with DC voltage below 1000V, This system

can be configured as a second-level architecture (BMU+RBMS) at least, which is suitable for

10KWh-100KWh project, it can be together with industrial computer and battery stack

management software to make multi-cluster battery systems in parallel to form a three-level

architecture BMU+RBMS+SBMS) to form a battery stack, which is suitable for 50KWh-

2MWh project ， Up to 1000Mwh and other occasions. it can meet different project

requirements.

The product has a complete and reliable operation and protection strategy, which can

effectively prolong the service life of the battery pack. lt comes with a variety of communication

interfaces, which can be directly or indirectly connected with third-party energy

management systems.

Product Features

ïAdvanced battery management

system -- highly integrated battery

management system can realize seamless

monitoring.

ïPerfect self inspection and operation

Status detection function, combined with HMI display screen, the system Operation

information is clear at a glance.

ïPerfect and reliable system control and protection strategies to fully ensure the safety of

the battery and escort the extension of the service life of the battery pack.

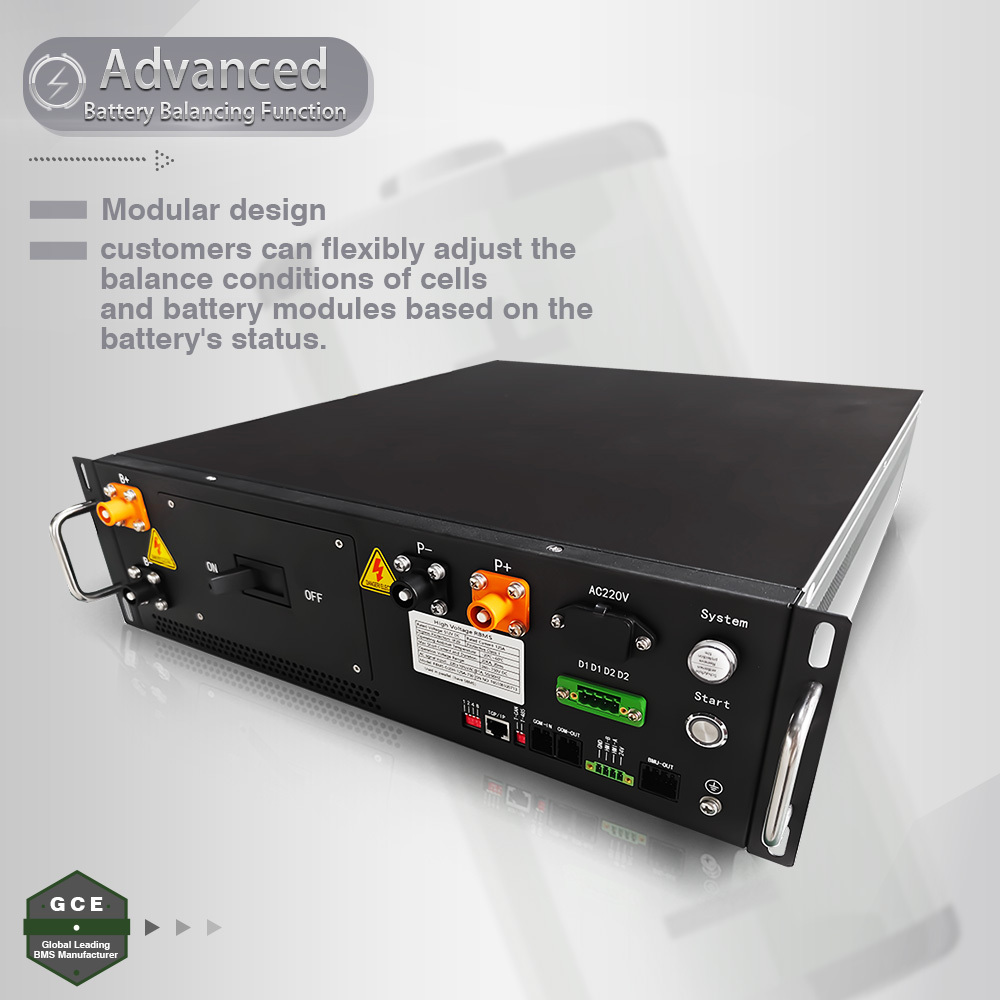

ïModular design, configurable and expandable -- multiple energy storage units can be

flexibly combined to expand into a larger energy storage system.

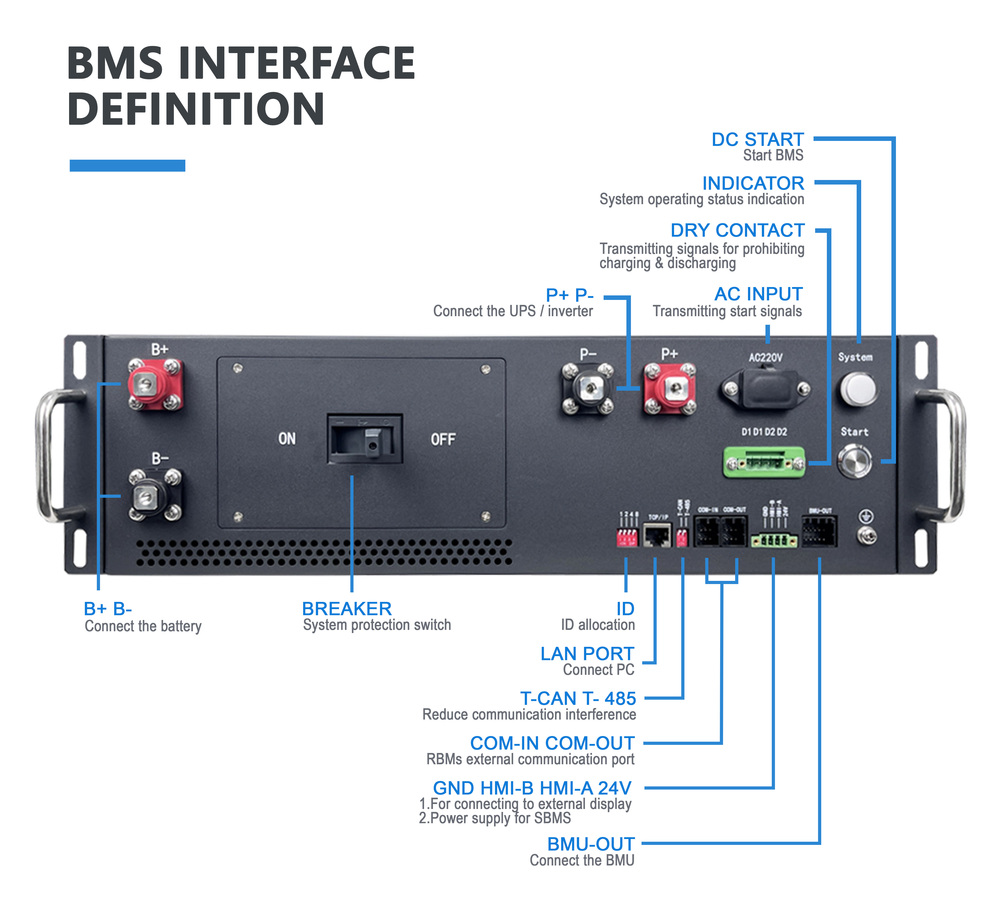

ïRich communication interfaces -- RS485, CAN, Ethernet, dry contact input and output

interfaces, supporting communication with most PCS/Inverter/UPS and moni- toring servers on

the market.

ïFlexible communication interface protocol -- the factory comes with the company's

communication protocol, and PCS / Inverter / UPS of different manufacturers can also be

adapted according to customer needs.

ïGreat capacity data memory -- he built-in high-capacity memory chip can store a large

number of key operation data, and SD card can be added to store the historical data of the cell.

ïAutomatic circulation control and automatic parallel /offiine control can easily realize

the parallel connection of battery packs.
